EvoControl Ventilation Touch Display
Models: A100 G3, A110T G3-G4, A170T G2, A200S, A230T, A250S, A390T, A400S, A590T, A600S/T, A900ST G3, A1, A2, M1, M2, R20, R25, R40, R50, R70
3.1 Menu 1
1:
Heat recovery active.
Post-heating active.
Kyla active.
Defrosting active.
2:
Temperature setting for active operating mode.
3:
Activation of the operating mode.
4:
Indication of external operating mode, air quality control, fire, stop.
5:
A-alarm.
B-alarm.
C-alarm.
Cloud service inactive.
Cloud service active.
Cloud service active, remote control allowed.
Networks are missing.
Network active.
Network active, contact with internet.
6:
Go to “Menu 2”.
7:
Activation of ECO function (parameter 400 must be activated).

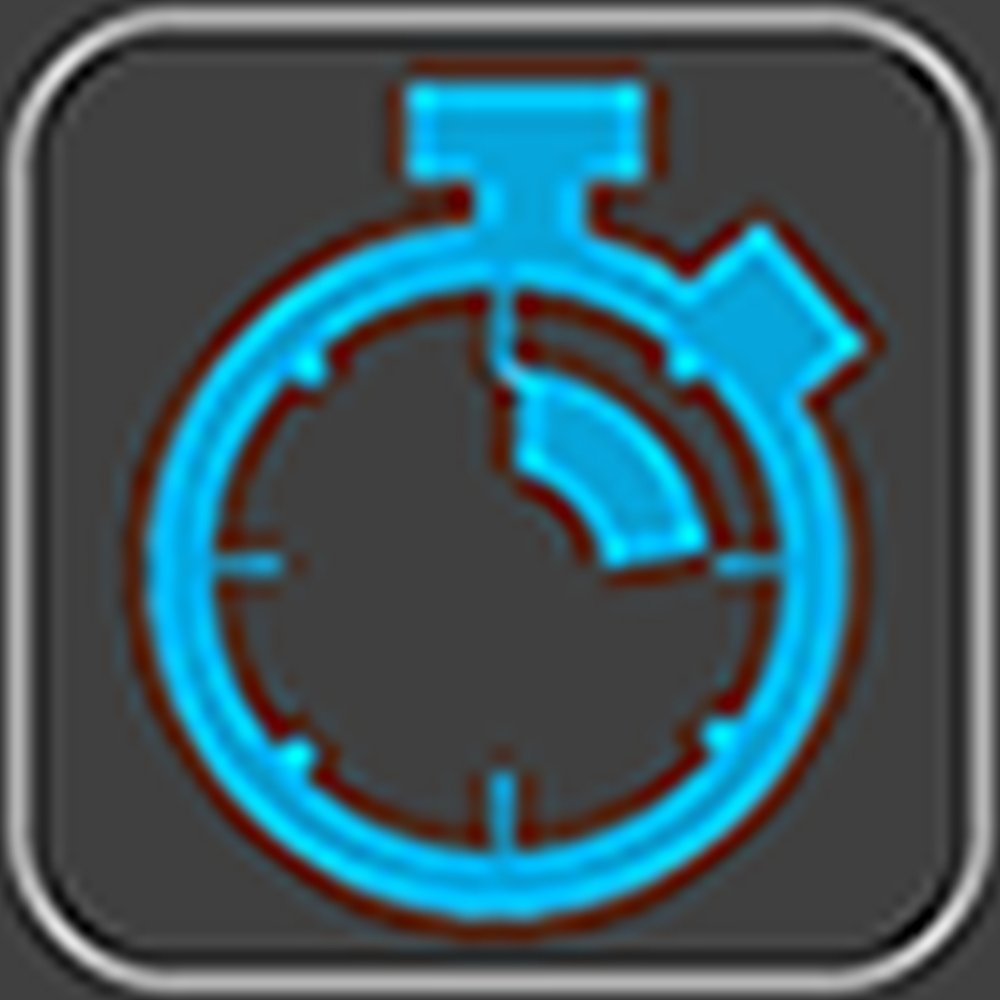

8:
Activation of timer (times must be set), for deactivation hold button for 2 seconds.
9:
Activation of the overpressure function (stove function).

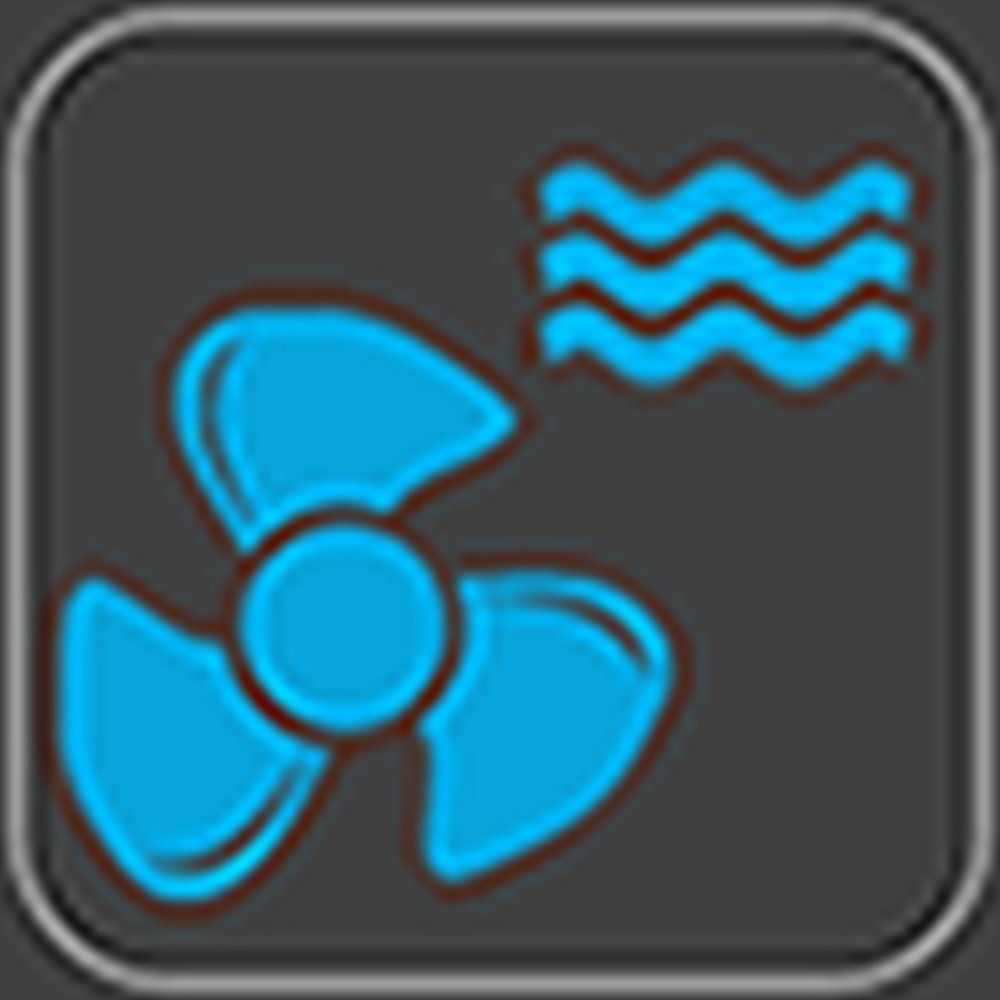

10:
Activation of the forcing timer.
11:
Stop active, to activate hold button for 2 seconds.
Other operating mode active or unit in standby (timer, external control).
